The shape of the internal acoustic porus of Sima de los Huesos: a comparative study

Amara Quirós-Sánchez, Ángeles Sánchez-Andrés, Julia Diez-Valero, José-Miguel Carretero, Ignacio Martínez, Mercedes Conde-Valverde

Supplementary material · ESHE 2026 – P019

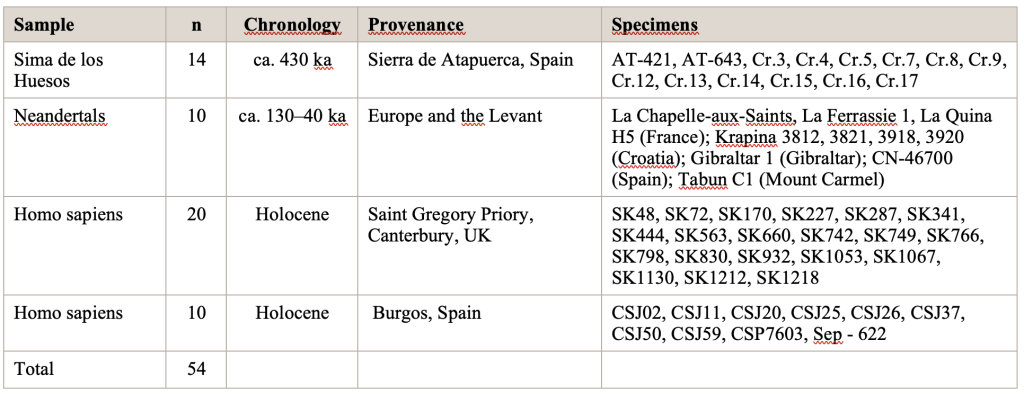

Composition of the sample

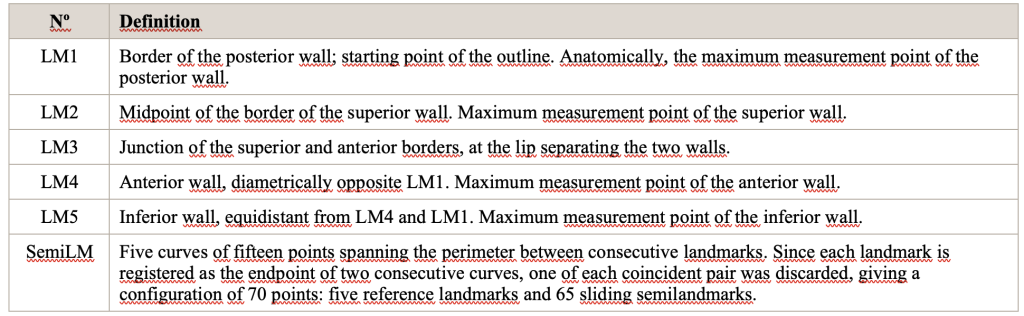

Landmark protocol

The outline of the porus acusticus internus is delimited by five reference landmarks, defined geometrically on the perimeter itself. The four canal walls and their maximum measurement points follow Sakashita and Sando (1995).

Depth is controlled by orienting the model with the line of sight perpendicular to the aperture of the porus, so that the outline is seen edge-on and any point displaced into or out of the canal can be detected and corrected.

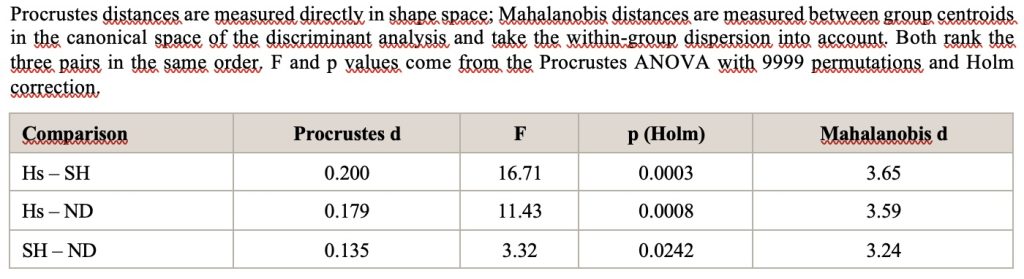

Distances between group mean shapes

Software and analysis

Segmentation and surface model export were performed in Mimics v.18 (Materialise, Leuven) and semilandmarks were digitised in Avizo 7.1. All statistical analyses were carried out in R 4.5.1 (R Core Team, 2025) with the geomorph package (v. 4.0.10; Baken et al., 2021; Adams et al., 2025). Procrustes ANOVA and pairwise comparisons were tested by residual randomisation (RRPP) with 9999 permutations, and p values were corrected by the Holm method

References

Adams, D.C., Collyer, M.L., Kaliontzopoulou, A., Baken, E.K., 2025. Geomorph: Software for geometric morphometric analyses. R package version 4.0.10.

Arsuaga, J. L., Martínez, I., Arnold, L. J., Aranburu, A., Gracia-Téllez, A., Sharp, W. D., et al. (2014). Neandertal roots: cranial and chronological evidence from Sima de los Huesos. Science, 344(6190).

Bookstein, F. L. (1997). Landmark methods for forms without landmarks: morphometrics of group differences in outline shape. Medical Image Analysis, 1(3), 225–243.

Coleman, M. N., & Colbert, M. W. (2007). Technical note: CT thresholding protocols for taking measurements on three-dimensional models. American Journal of Physical Anthropology, 133(1), 723–725.

Collyer, M.L., Sekora, D.J., Adams, D.C., 2015. A method for analysis of phenotypic change for phenotypes described by high-dimensional data. Heredity 115, 357–365.

Conde-Valverde, M., Martínez, I., Quam, R. M., Rosa, M., Velez, A. D., Lorenzo, C., Jarabo, P., Bermúdez de Castro, J. M., Carbonell, E., & Arsuaga, J. L. (2021). Neanderthals and Homo sapiens had similar auditory and speech capacities. Nature Ecology & Evolution, 5, 609–615.

Conde-Valverde, M., Martínez, I., Quam, R., & Arsuaga, J. L. (2023). The ear of the Sima de los Huesos hominins (Atapuerca, Spain). The Anatomical Record, 307(7), 2410–2424.

Gunz, P., & Mitteroecker, P. (2013). Semilandmarks: a method for quantifying curves and surfaces. Hystrix, the Italian Journal of Mammalogy, 24(1), 103–109.

Martínez, I., Rosa, M., Arsuaga, J. L., Jarabo, P., Quam, R., Lorenzo, C., Gracia, A., Carretero, J. M., Bermúdez de Castro, J. M., & Carbonell, E. (2004). Auditory capacities in Middle Pleistocene humans from the Sierra de Atapuerca in Spain. Proceedings of the National Academy of Sciences, 101(27), 9976–9981.

Martínez, I., Conde‐Valverde, M., Quam, R., & Arsuaga, J. L. (2024). Fusion of the occipitomastoidal synchondrosis as a developmental marker in the Sima de los Huesos Crania (Atapuerca, Spain). The Anatomical Record, 307(7), 2425-2436.

R Core Team (2024). R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna.

Rennert, R. C., Brandel, M. G., Steinberg, J. A., Friedman, R. A., Couldwell, W. T., Fukushima, T., Day, J. D., Khalessi, A. A., & Levy, M. L. (2022). Maturation of the internal auditory canal and posterior petrous bone with relevance to lateral and posterolateral skull base approaches. Scientific Reports, 12, 3489.

Rink, W. J., Schwarcz, H. P., Smith, F. H., & Radovčić, J. (1995). ESR ages for Krapina hominids. Nature, 378(6552), 24.

Sakashita, T., & Sando, I. (1995). Postnatal development of the internal auditory canal studied by computer-aided three-dimensional reconstruction and measurement. Annals of Otology, Rhinology and Laryngology, 104(6), 469–476.

Urciuoli, A., Martínez, I., Quam, R., Arsuaga, J. L., Keeling, B. A., Diez-Valero, J., & Conde-Valverde, M. (2025). Semicircular canals shed light on bottleneck events in the evolution of the Neanderthal clade. Nature Communications, 16, 972.
